Features
Features
Attractive black finish
Universal bracket — easy upgrade from 300 to 500 model.No additional plumbing or wiring required.
Bi-directional easy-pivot arm — 25° rotation each side.
Electronic ignition — one or multiple units can be switched on and off simultaneously from a single remote-located switch.
Automatic re-ignition — should the heater not re-ignite for any reason, the integrated “Flame Failure Safety Shut-off Control” turns the heater off immediately.
Stainless steel casing — components are protected from tampering. Assists in preventing dirt and dust from accumulating on the wiring and components.
Min. distance to combustible materials-Sides: 3.6’ / 1100mm.
(without heat deflector)2-Above (to ceiling): 3’6’ / 1100mm.
(with heat deflector)-Above (to ceiling): 1’2” / 1100mm.
Mounting height requirement to ground3-8’ / 2438mm.
- BTU's: 26000
- Gas Connection: 1/2" NPT Female
- Electrical Connection: 3-Pin Insulated Plug
About this Series:

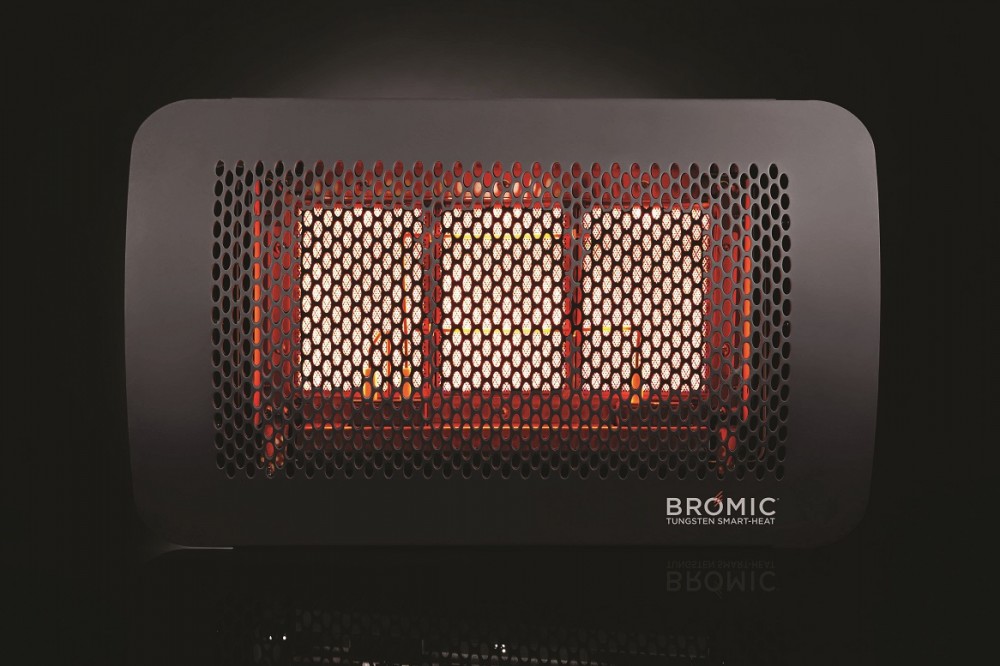

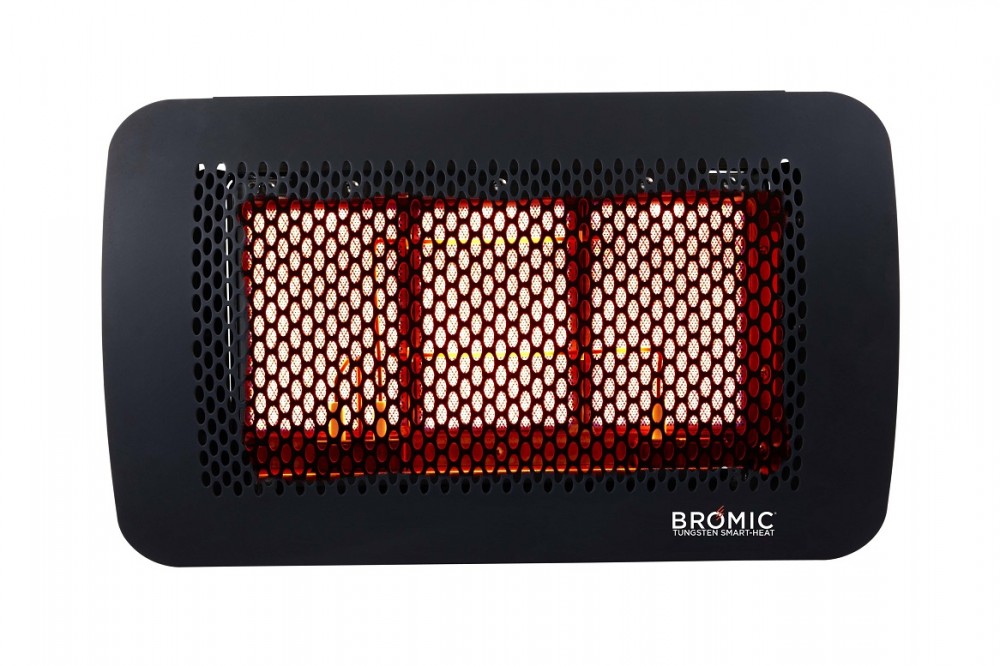

Tungsten Smart-Heat - 300 Series Patio Heater, Item # BH0210001. The Tungsten Smart Heat 300 series patio heater delivers a slick style for outdoor patio heat. Delivering an impressive 26,000 BTU’s, this heater uses 3 burners that emit a red glow for an impressive look. For larger patio areas, the Tungsten Smart Heat series is also available in a 500 series.
Specification
Specification
Dimensions
| Depth/Extension: | 14.09" |
| Height: | 14.25" |
| Width/Diameter (in): | 19.29" |
| Heating Dimensions | |
| Pole Dimension: | 156.00 |
| Heating Specifications | |
| Fuel Source: | Propane |
| Heating Diameter: | 120 Feet |
| Lamping | |
| Voltage Rating: | 110V |
| Other Information | |
| Material: | Stainless Steel |
| Weight: | 33.00 lbs. |
